HFSS online help > Running Simulations
To run a single setup or sweep:
1. Select a solution setup or sweep in the project tree.

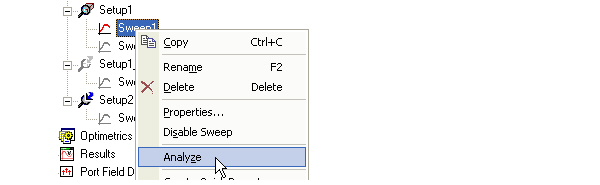

2. Right-click and select Analyze from the shortcut menu. The graphic shows a single sweep selected for analysis.
![[spacer]](1p.gif){kind=small}
HFSS computes the 3D field solution inside the structure for a solution, and for a select sweep, does so for the sweep variables.
To run more than one analysis at a time, follow the same procedure while a simulation is running. If you have enabled queuing, the next solution setup will be solved when the previous solution is complete.
Note |
If a linked dependency in the setup is already simulating (for example, due to setup links to the same external source for a near or far field wave, or a magnetic bias), HFSS will not allow another dependent simulation to start until the first use of the source has completed. |
Related Topics
Running an Optimetrics Analysis
|
||
