Material Assignment Transfer

Pre-requisite for material assignment transfer

• Engineering Data should have materials used in ANSYS Electromagnetics model and material names should match with case.

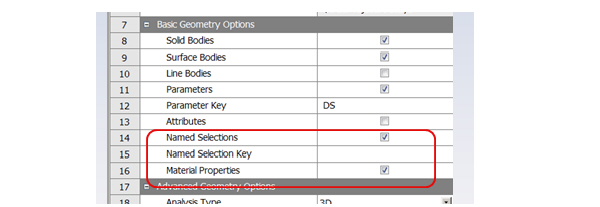

• Material Properties in Geometry Options must be checked

Pre-requisite for transfer as named selection

• Named Selection in Geometry Options must be checked

[spacer]

• Named Selection Key should either be empty or include ‘Material’
