ANSYS Workbench Integration Overview > ANSYS EM CAD Integration through Workbench
Important Geometry Options for CAD Integration

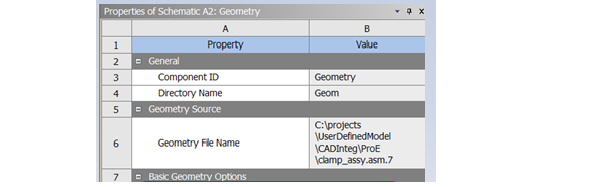

Select a Geometry Cell in Workbench to see options in Properties window.
Control dimension of bodies coming from CAD
Make sure parameters is checked and parameter key (filter) is appropriate to bring CAD parameters.
Attributes key should be empty or Color to bring in CAD Colors
Material properties must be checked to bring in the material assignment.
The Mixed import resolution option is used to resolve parts with mixed dimension (typically from Pro/E)
Refer to ANSYS Help for details: Path // CAD Integration // Overview :: 2 // Project Schematic Presence Related to CAD Integration // Geometry Preferences
Related Topics
ANSYS EM CAD Integration Through Workbench
CAD Integration and Geometry Sharing
Bi-Directional CAD Integration
CAD Integration Model Edits
Multiple Geometry Links for CAD Integration
CAD Integration Functionality
Healing with CAD Integration
-
