ANSYS Workbench Integration Overview > ANSYS EM CAD Integration through Workbench
CAD Integration Model Edits

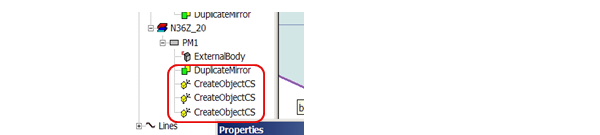

Several modeling operations are allowed on a CAD model in the ANSYS Electromagnetics Modeler window. Operations will included in the History tree and retained during model Refresh.
The following operations are not allowed
Non history tree operations like Heal or defeature.

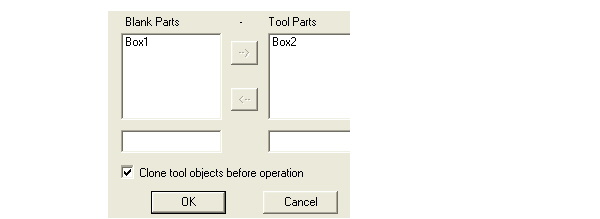

Operations which use UDM parts as Tool such as Sweep, or Boolean operations like Split or Unite (but allowed when you select the clone tool option).

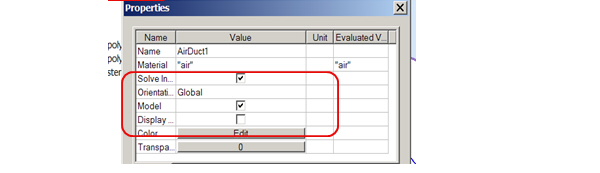

The following part attributes can be modified for UDM parts.
Model/Non Model flag
Solve Inside flag
Part orientation
Color
Display Wireframe
It is not possible to delete individual parts of UDM
